Chipset Type: B550
Socket Type: AM4
Memory Technology: Ddr4
Brand: SOYO
Battery Properties: Non-rechargeable Battery
Non-rechargeable Battery: Button Battery (Diameter＜20mm)
Item ID: YQ2313359
Origin: Guangdong,China

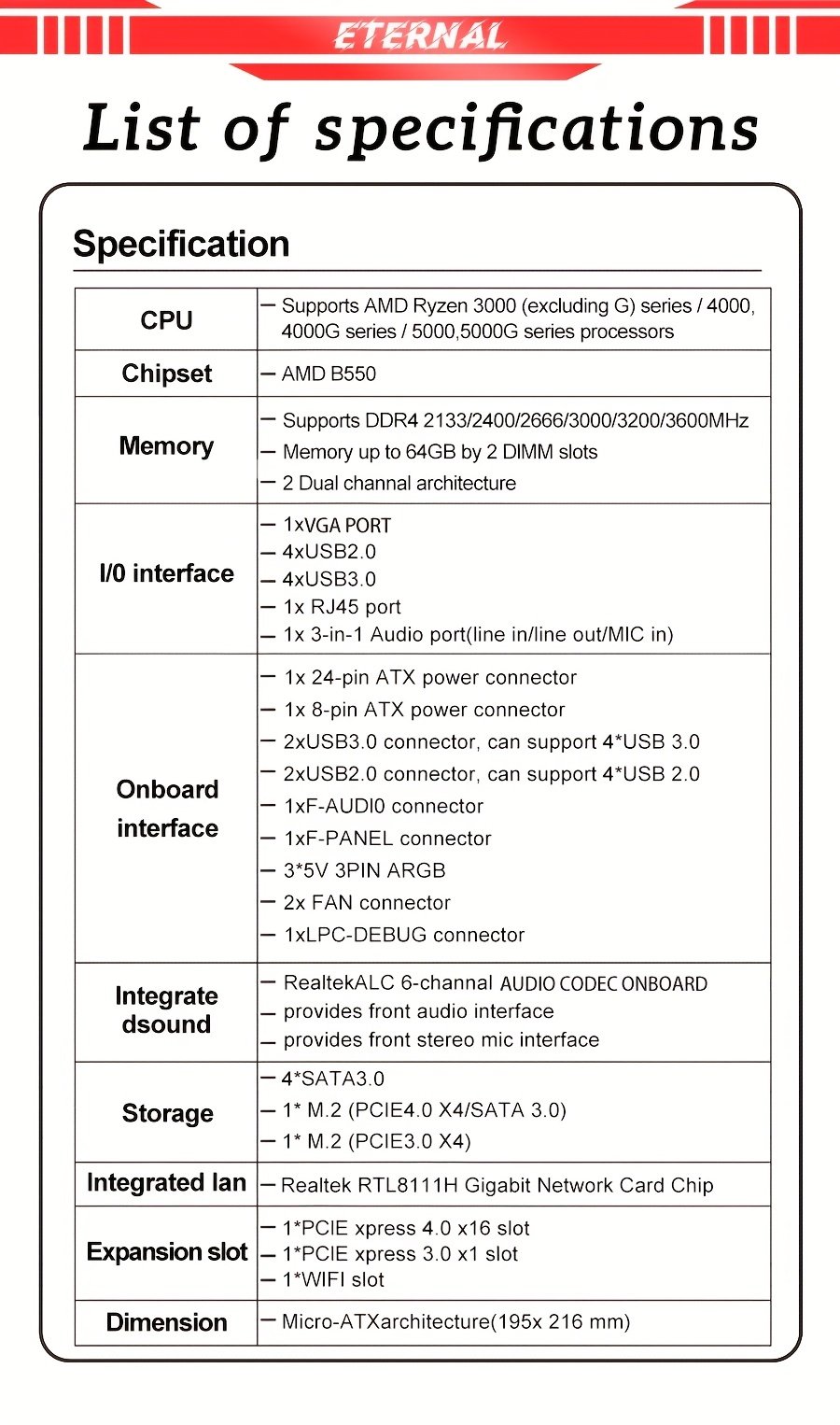

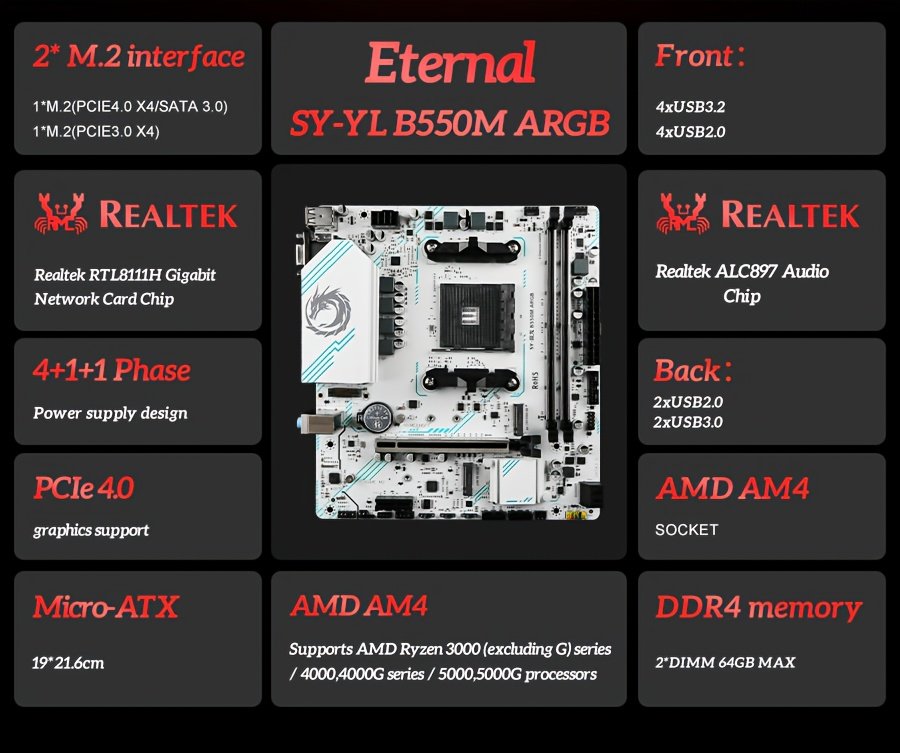

Specification
Motherboard chip: AMD B550
CPU: Support AMD Ryzen 3000 (excluding G) series/4000, 4000G series/5000, 5000G series processors

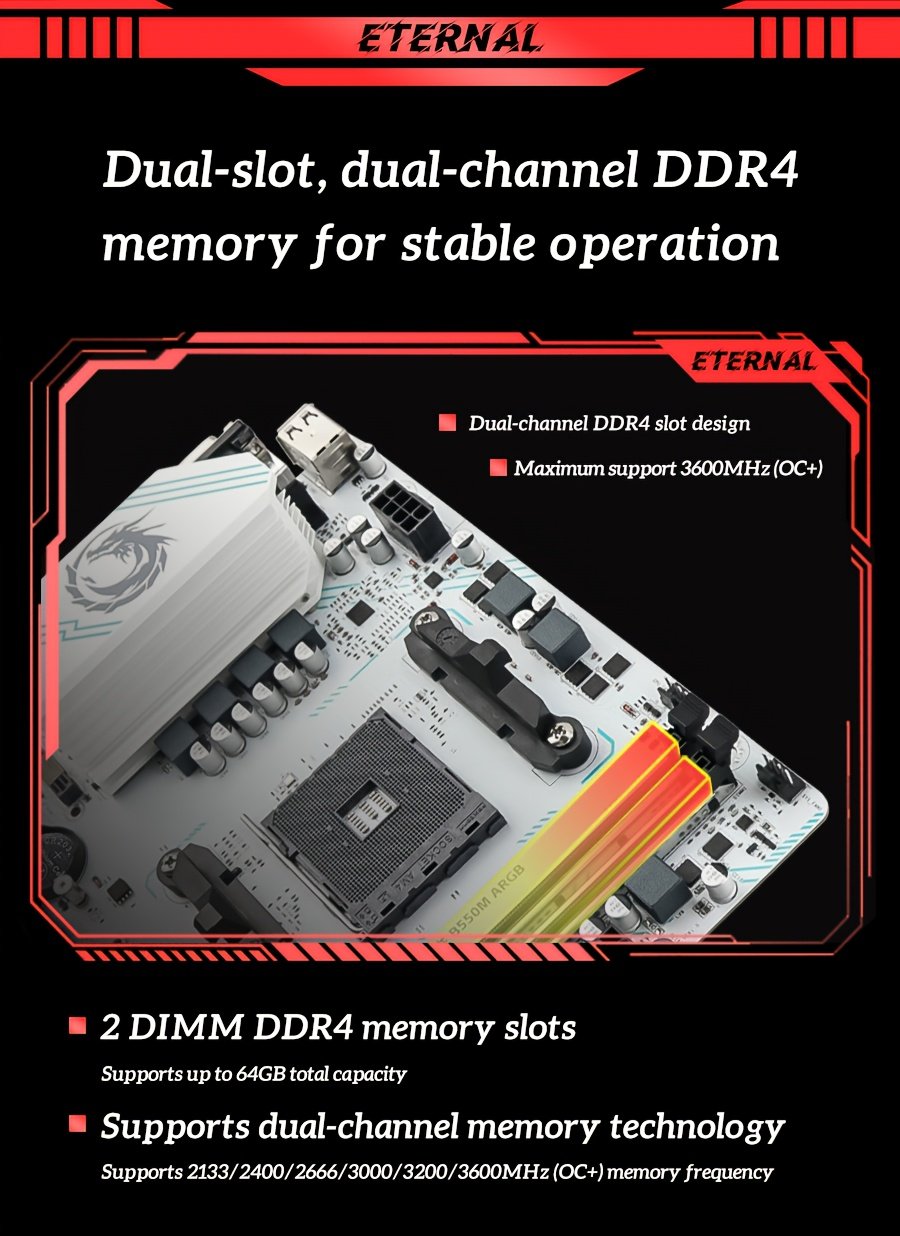

Memory: DDR4*2 dual channel; support 2133/2400/2666/3000/3200/3600MHz (OC+), support XMP, maximum support 64G (32G*2)

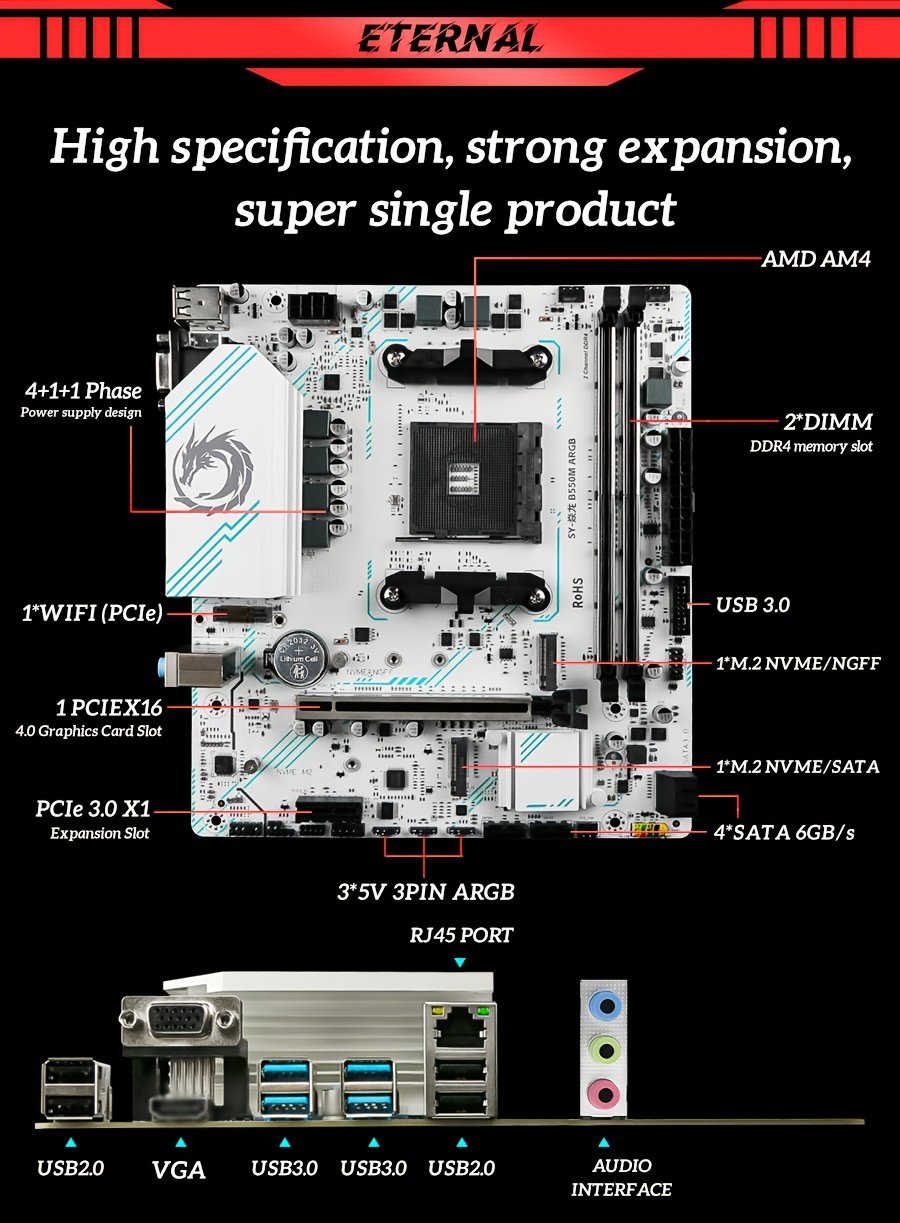

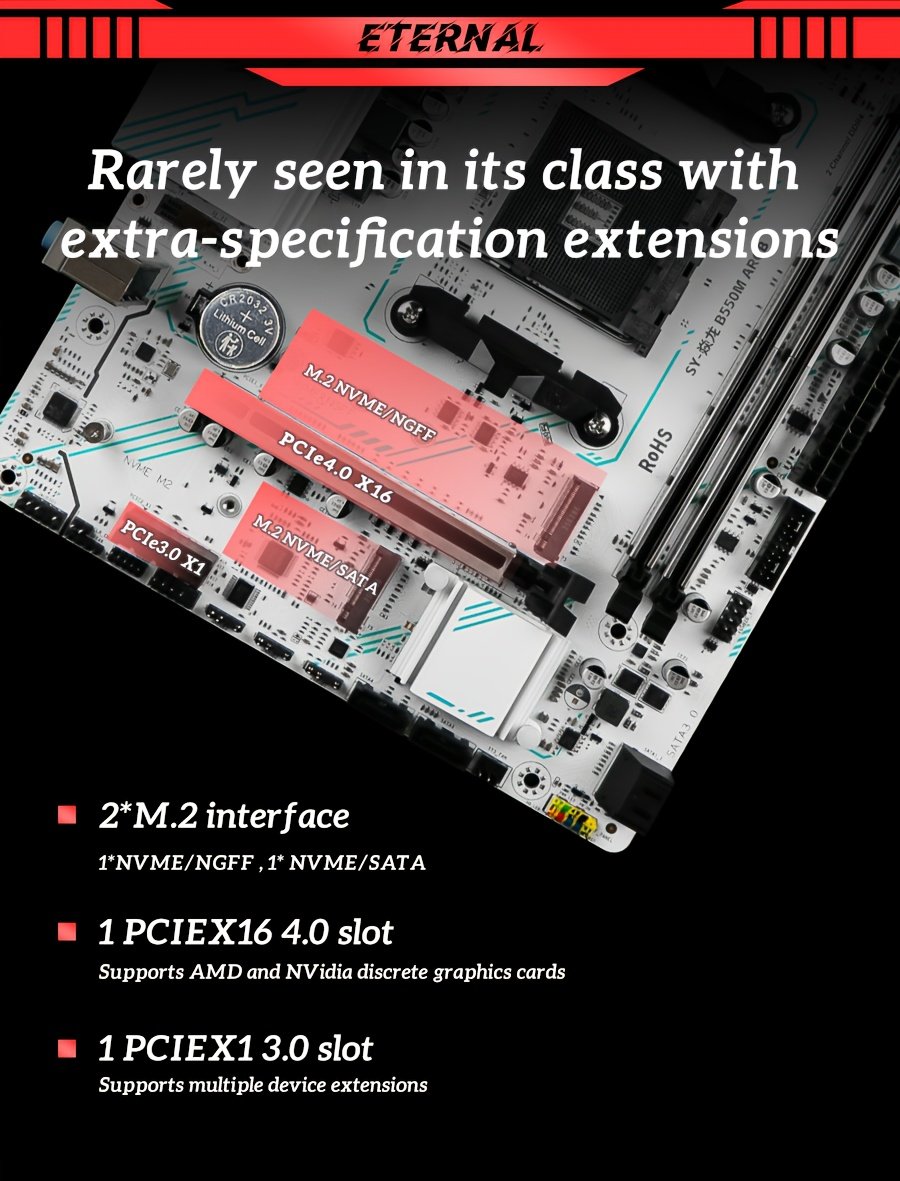

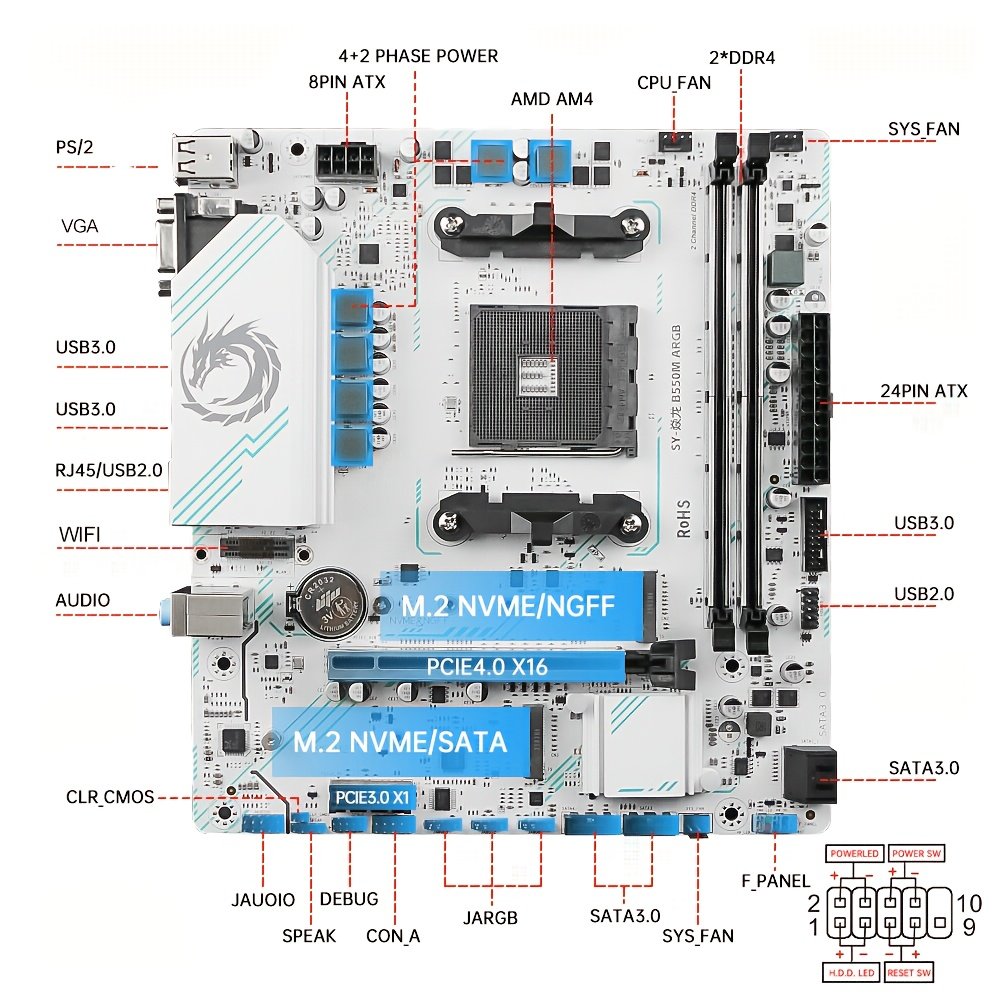

Storage: 2* M.2 slot (CN2: PCIE4.0 X4/SATA 3.0) (CN3: PCIE3.0 X4); 4*SATA 3.0 interface
Display interface: 1*VGA interface
Network: 1*RJ45 interface
Network card chip: Realtek RTL8111H Gigabit network card chip
PCIE slot: 1*PCIE X16 slot (PCIE4.0 X16) ; 1*PCIE X1 slot (PCIE3.0 X1); 1*WIFI slot (PCIe protocol)
Audio: 1*Line out; 1*MIC In; 1*Line In; 1*F_Audio built-in pin
Audio chip: Realtek ALC897 high-definition audio chip
IO interface: 4*USB3.2 GEN1 (5Gbps), 4*USB2.0
Built-in pins: 1 set of USB2.0 pins (can be expanded to 2 USB2.0 ports); 1 set of USB3.0 pins (can be expanded to 2 USB3.0 ports); 5Gbps
Function pins: 1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin+ 1*3Pin SYS fan;
1*4Pin Speak pin; 2*5Pin COM pin; 2*5Pin Debug pin; 3*5V 3PIN ARGB pin

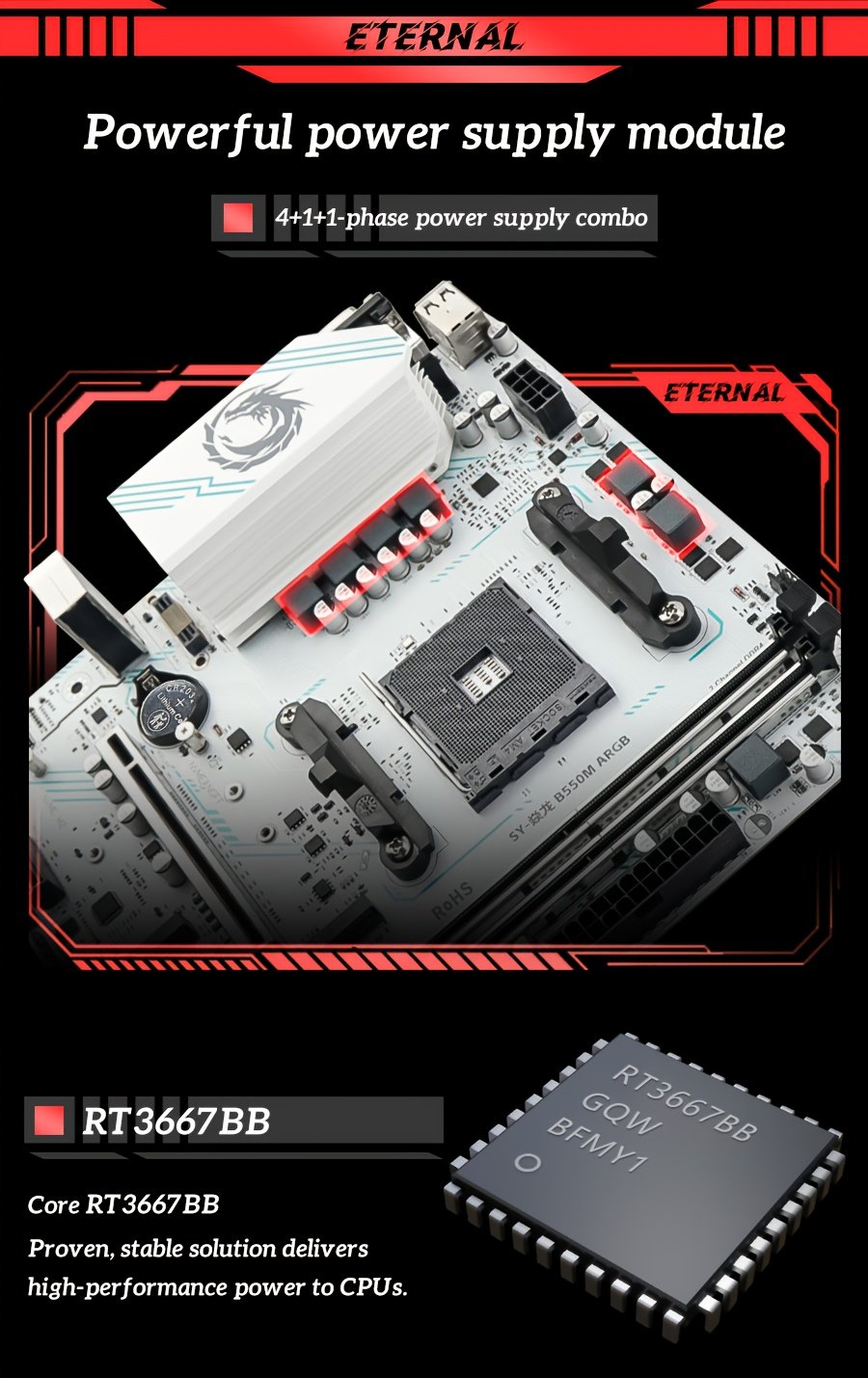

Power input: 24Pin+8Pin ATX power socket
Others 1*CLR CMOS 2PIN pin
Note:
This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 600w brand power supply).
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality CPU, RAM, M.2 SSD or other accessories
may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds.
